Bond

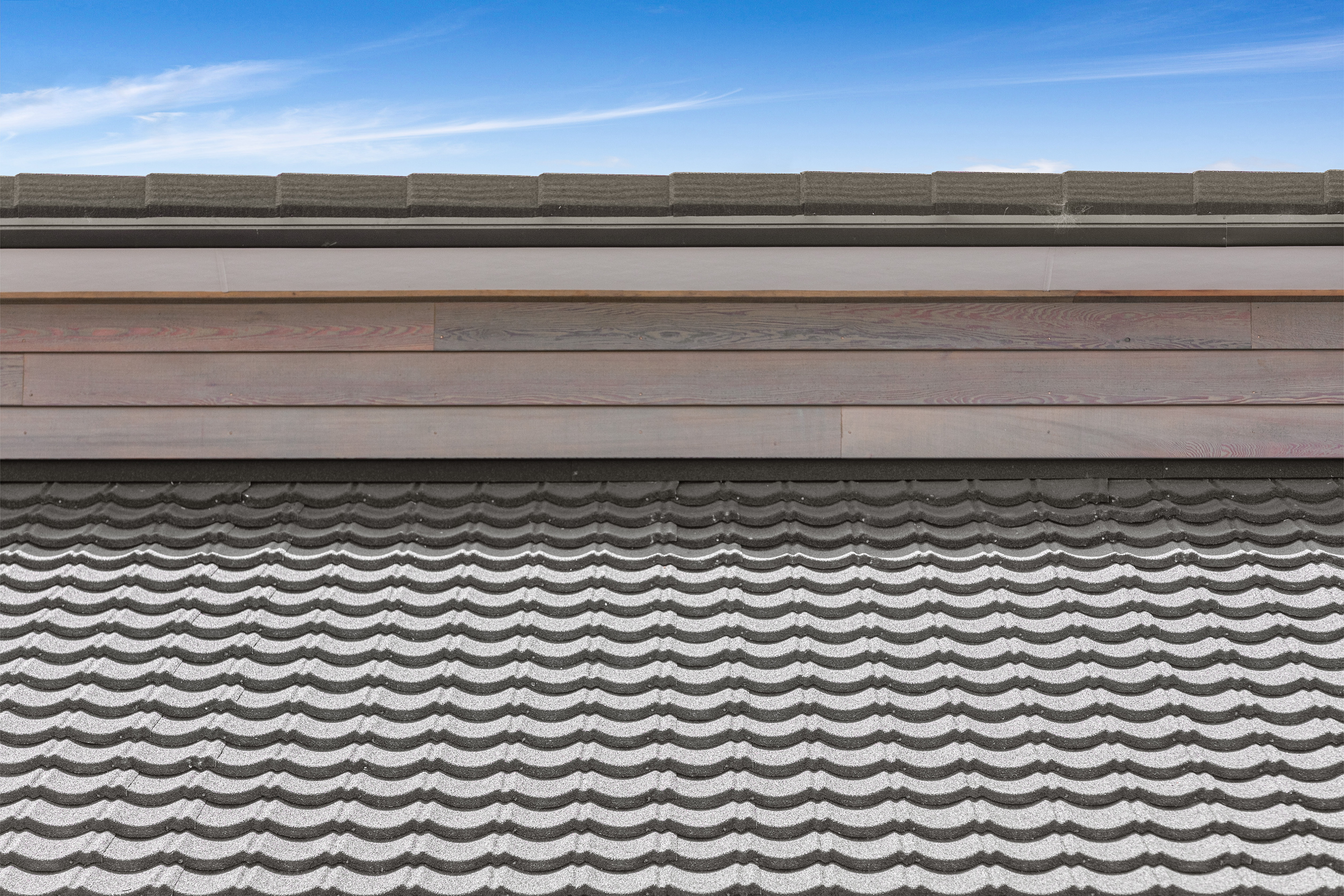

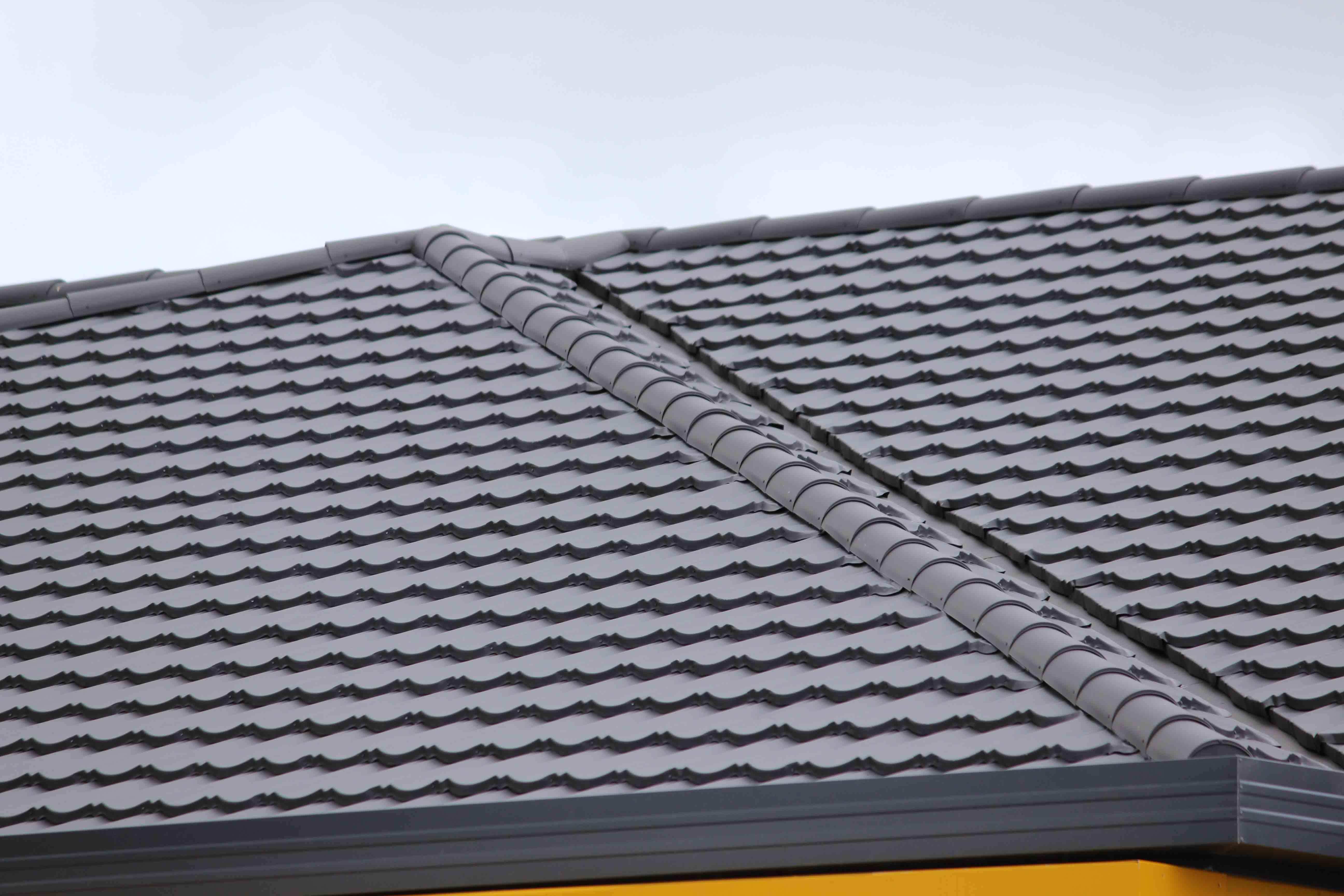

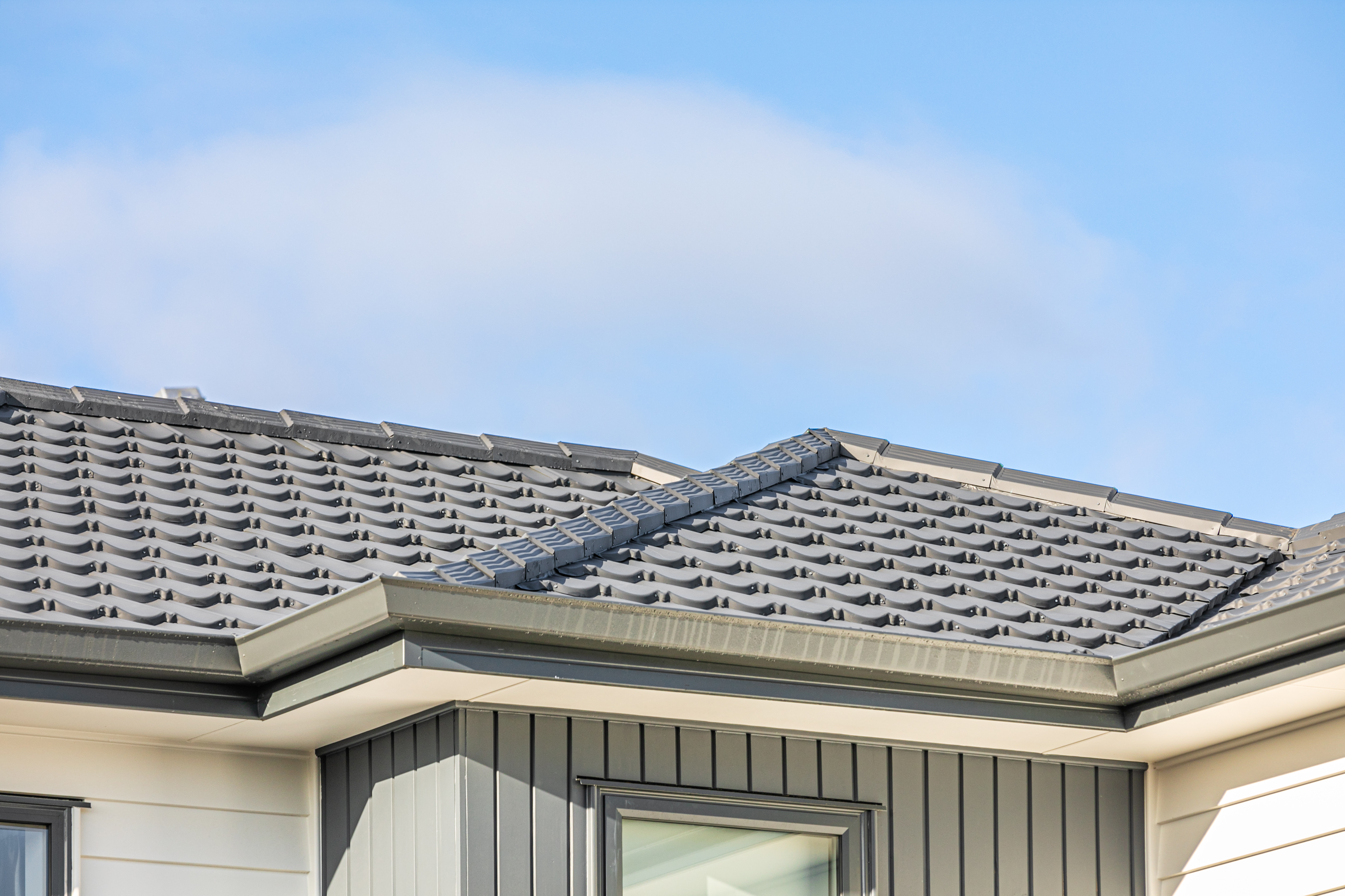

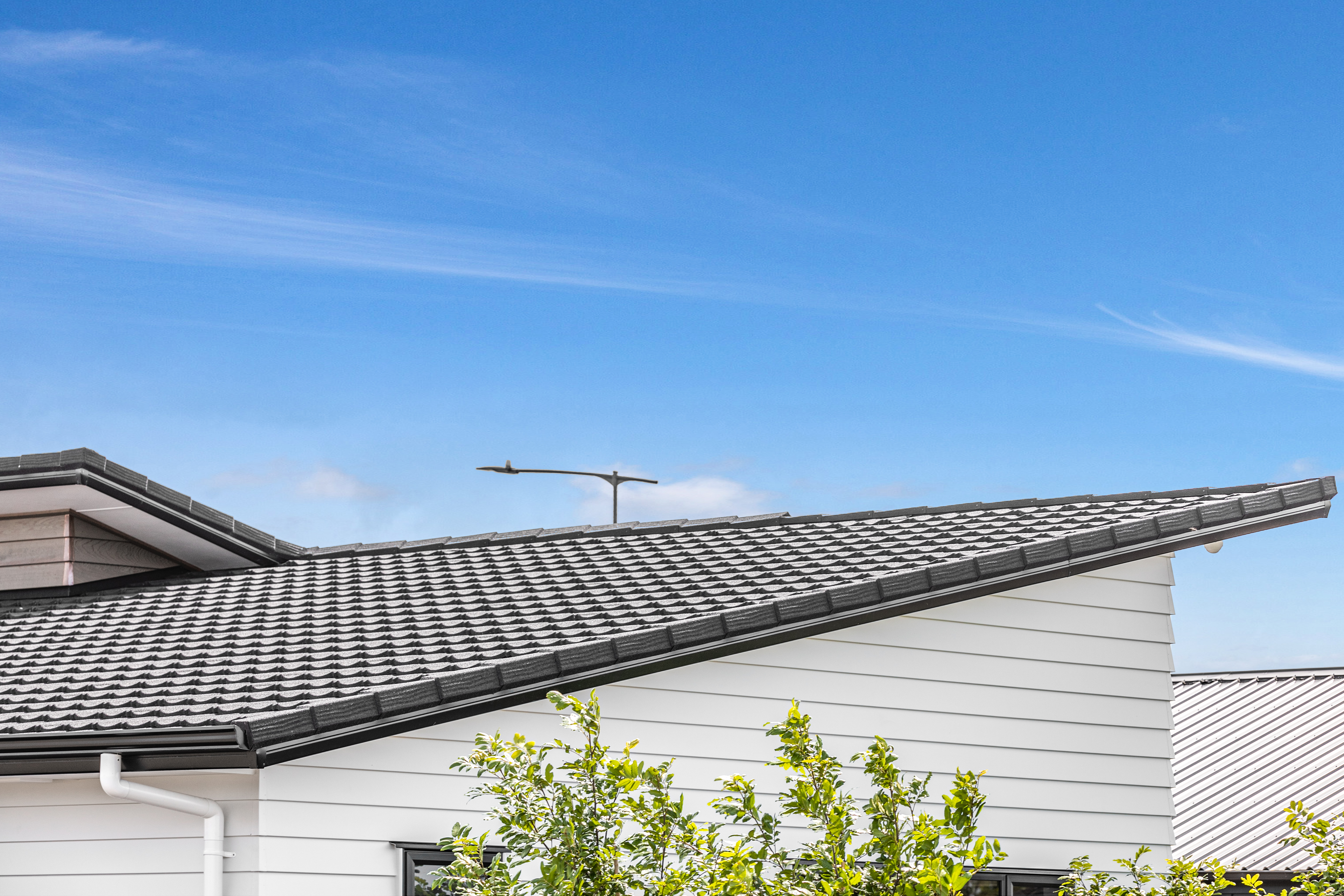

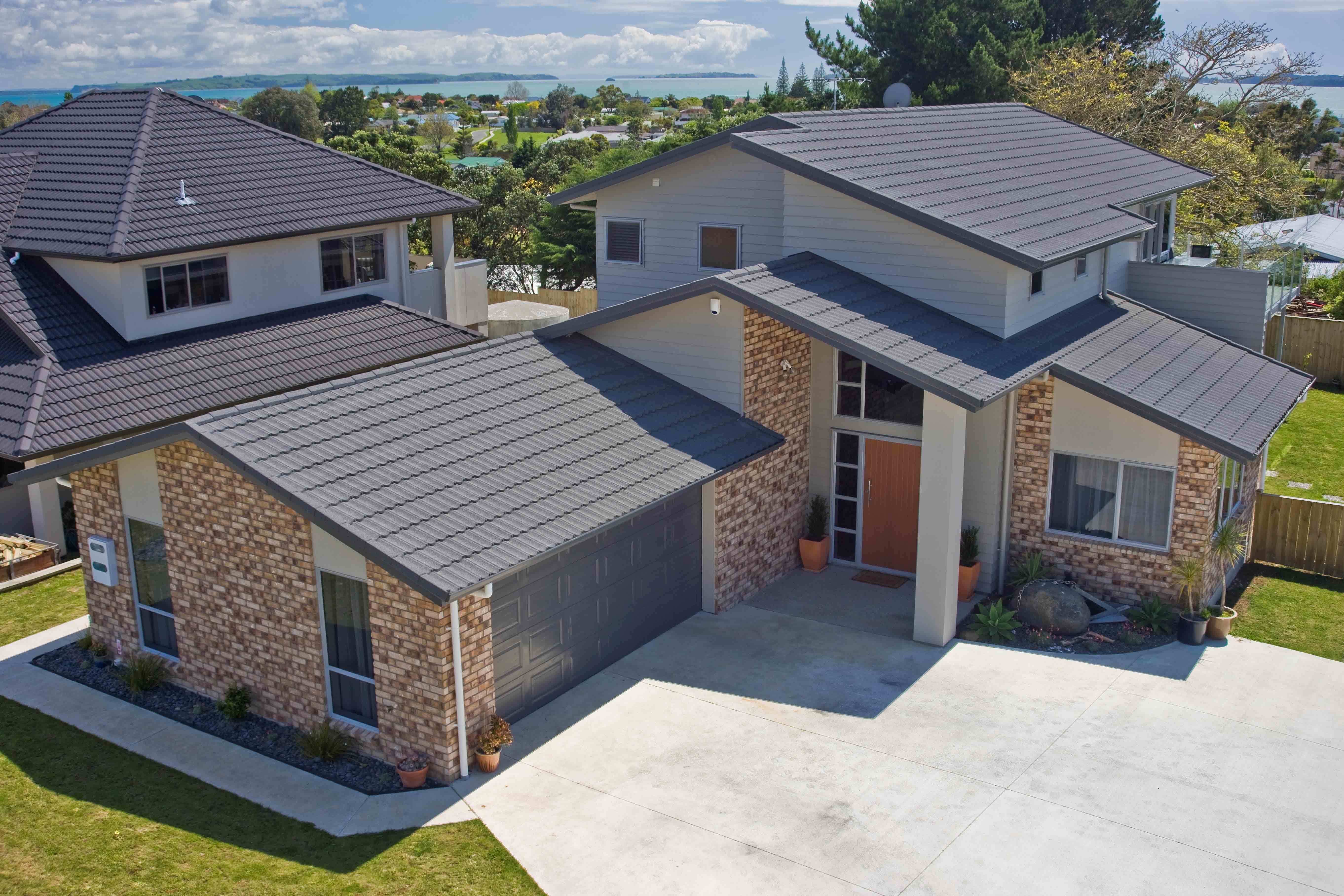

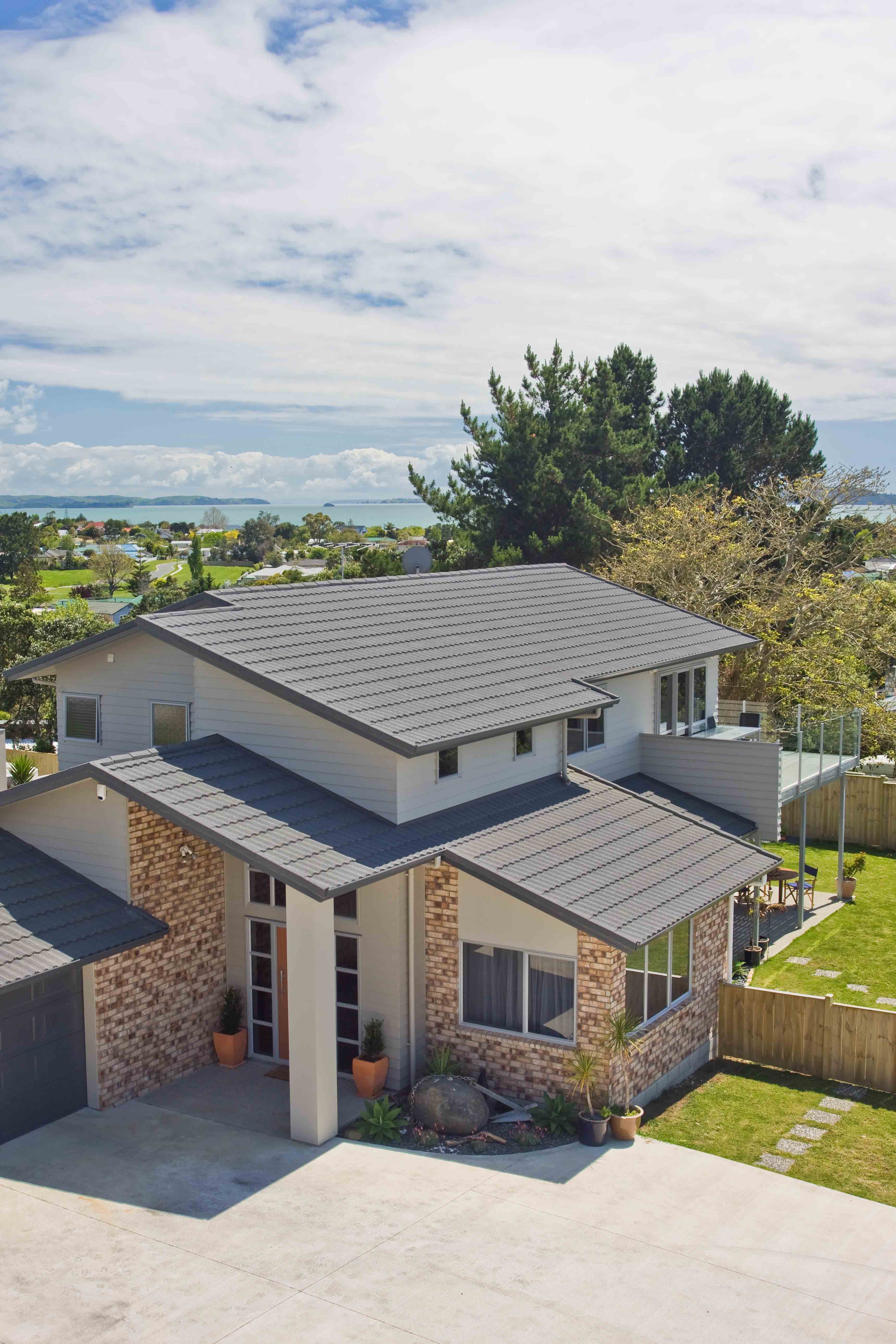

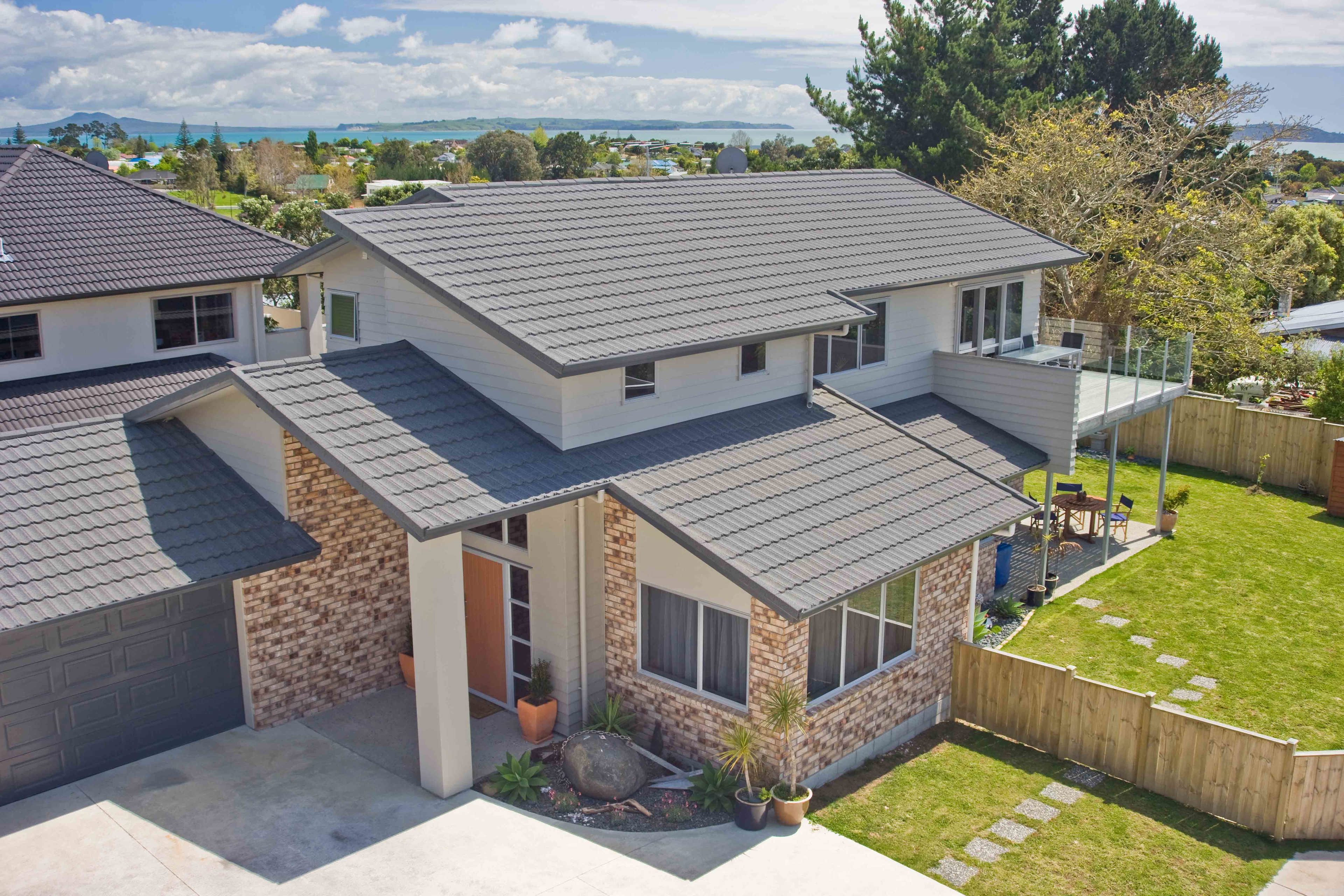

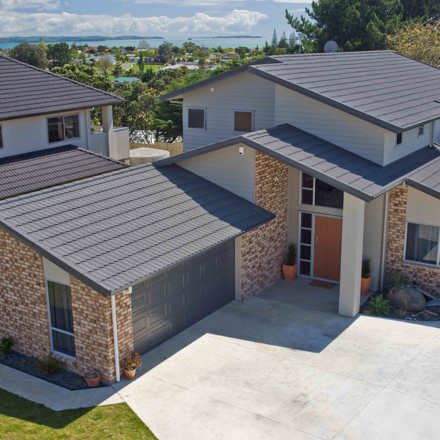

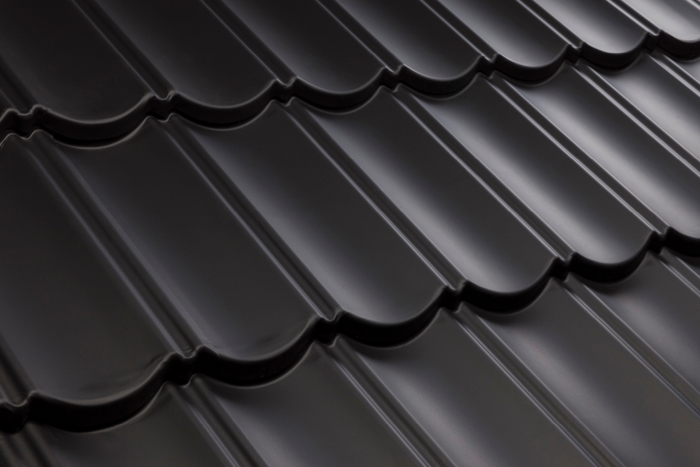

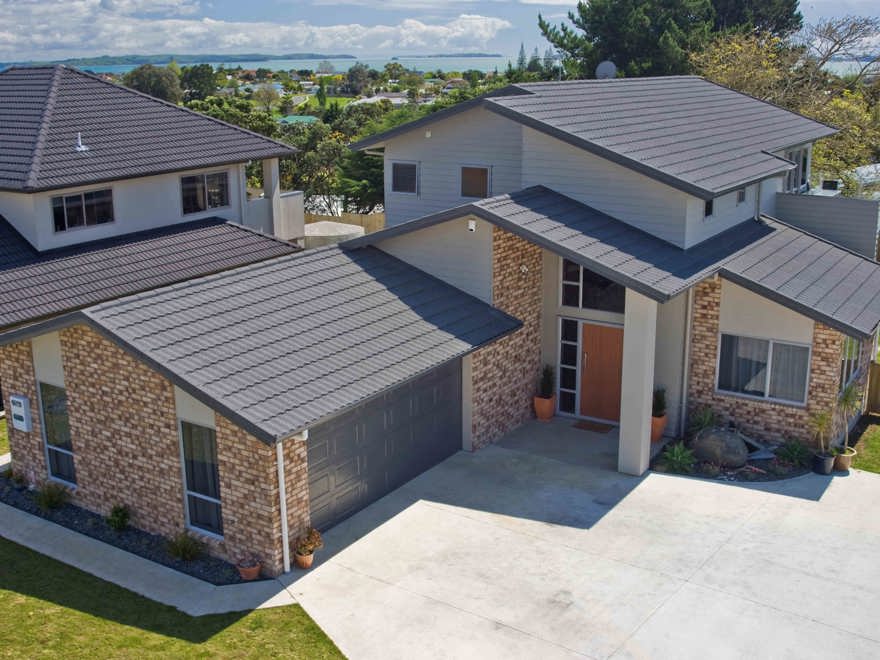

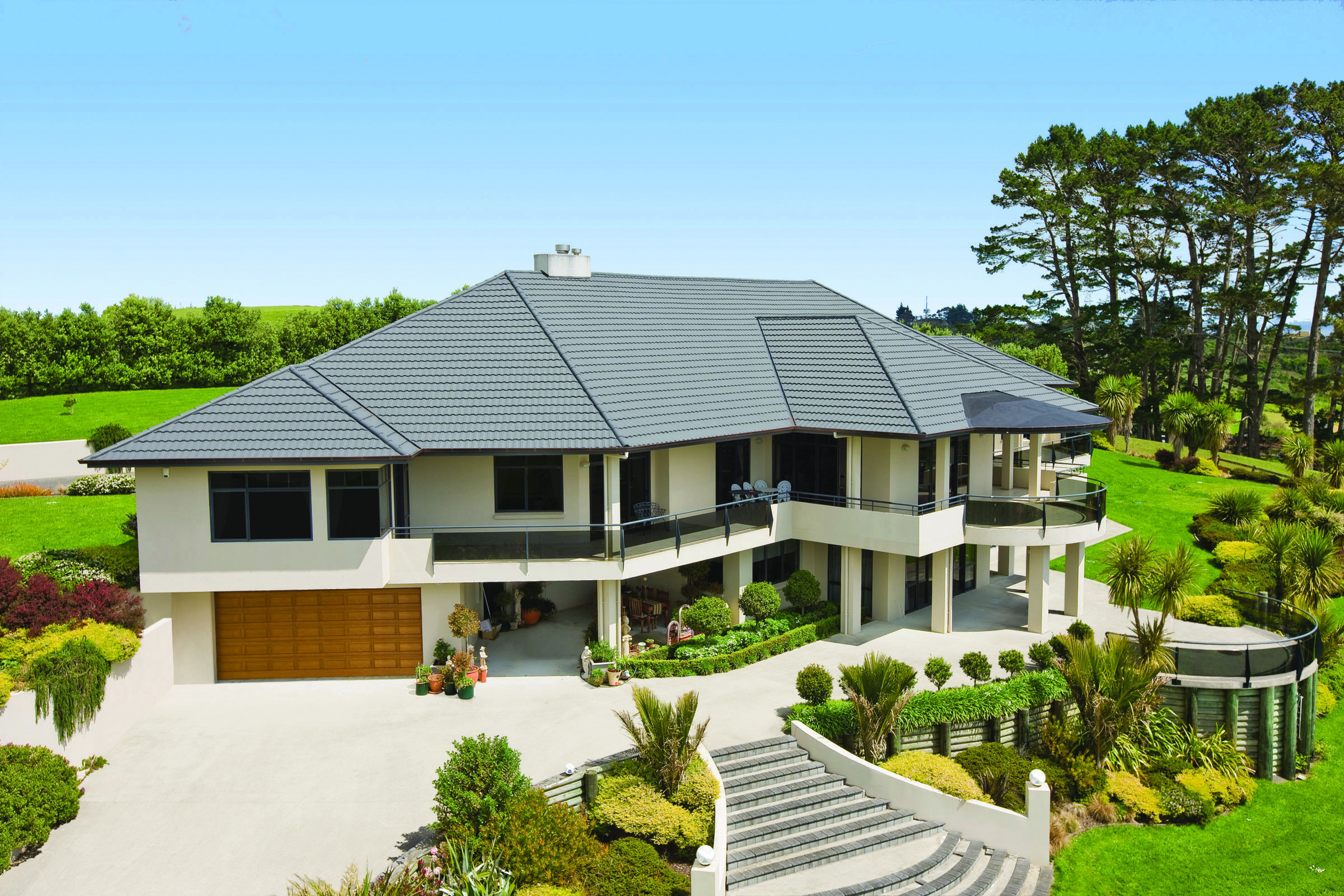

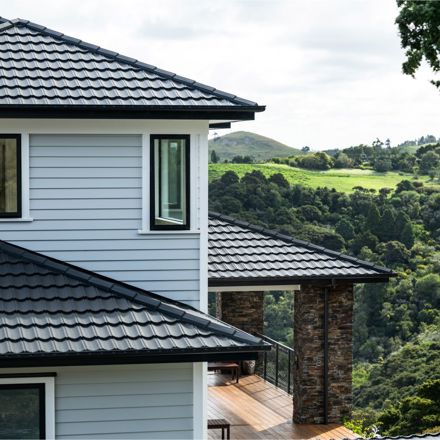

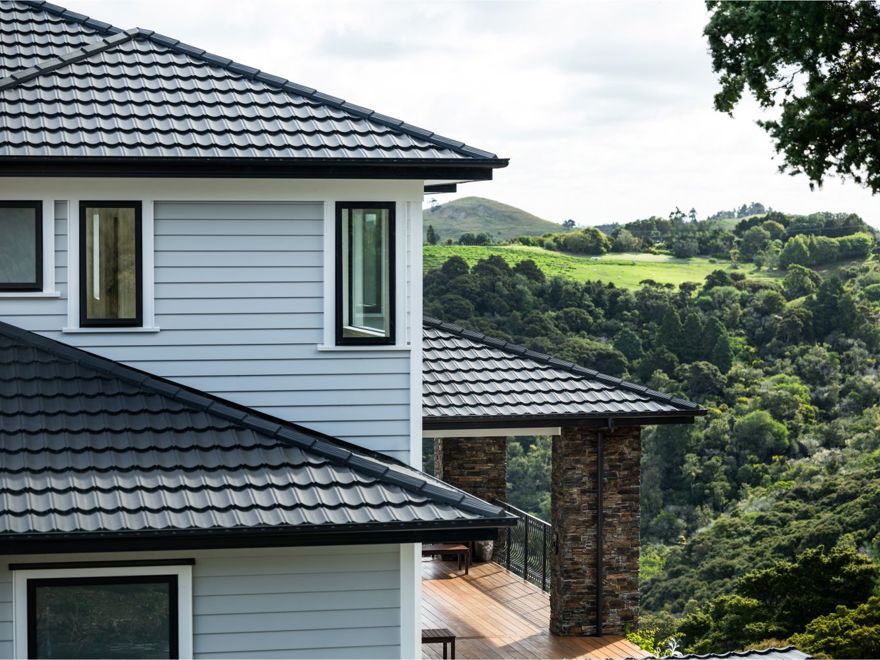

The traditional scalloped style of a tile roof that is often seen on traditional brick homes, but is equally appropriate above plaster or weatherboard exteriors.

Free quote Technical documents

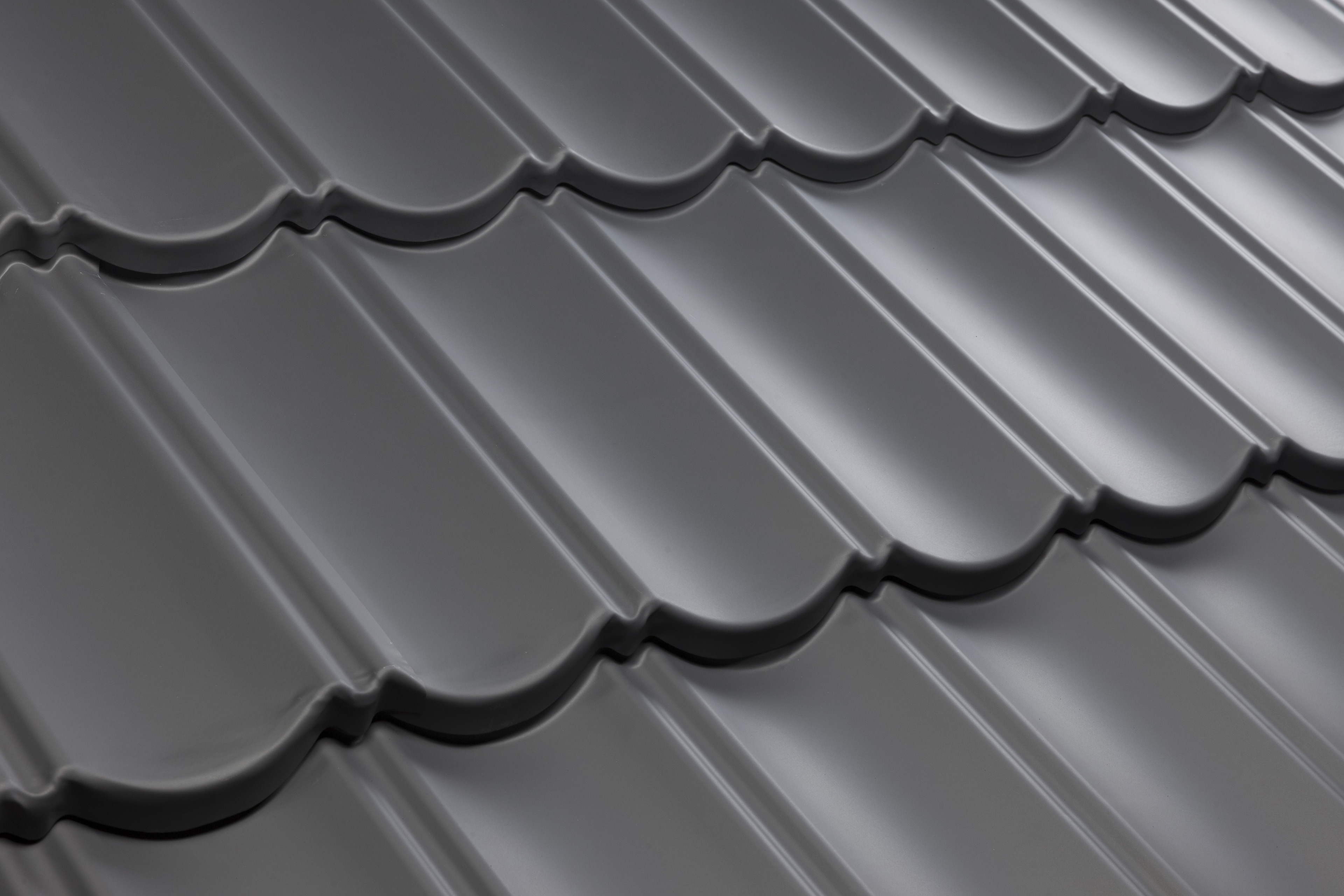

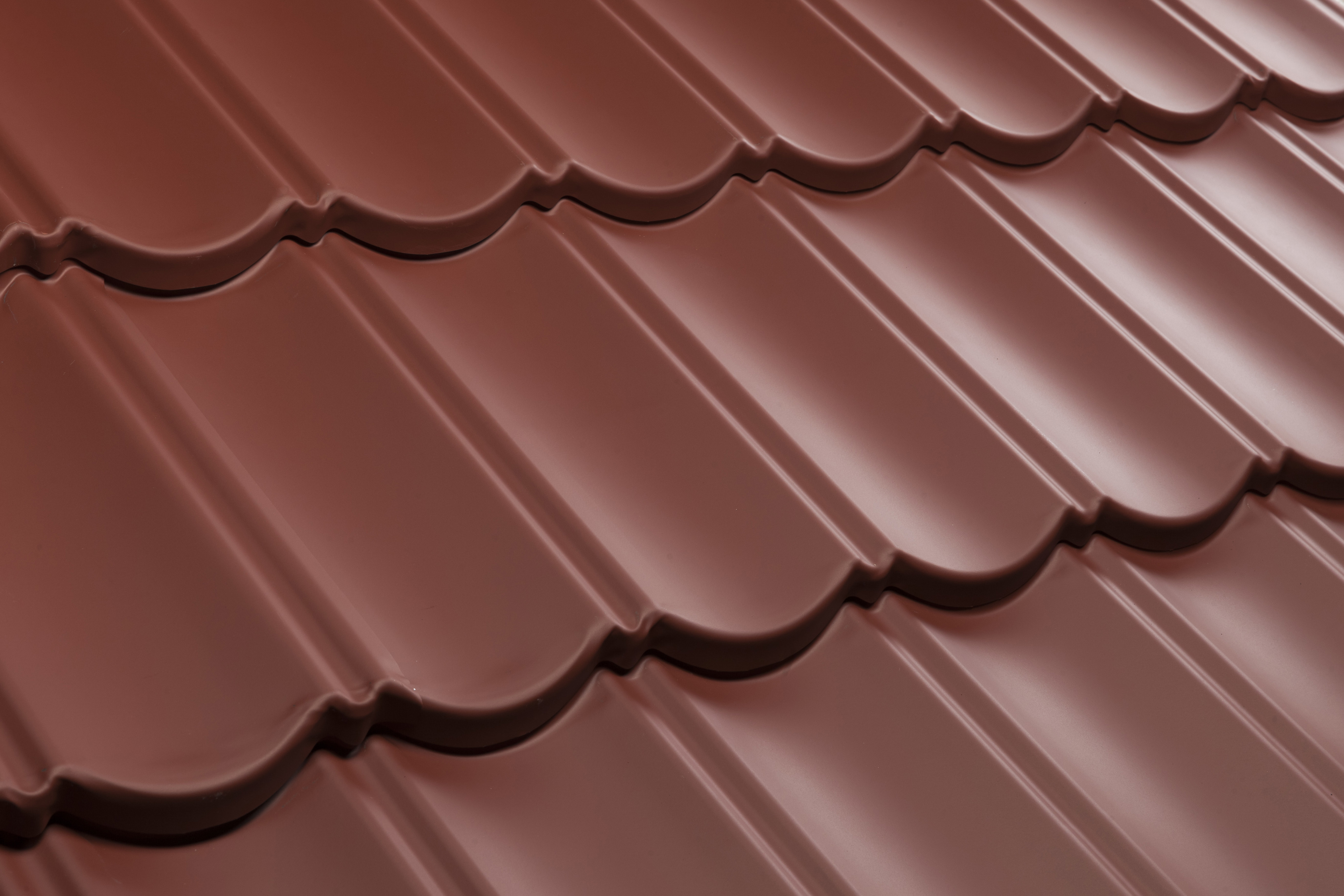

Popular Satin Colours

Grey Friars
Ebony
Sandstone Grey
Scoria

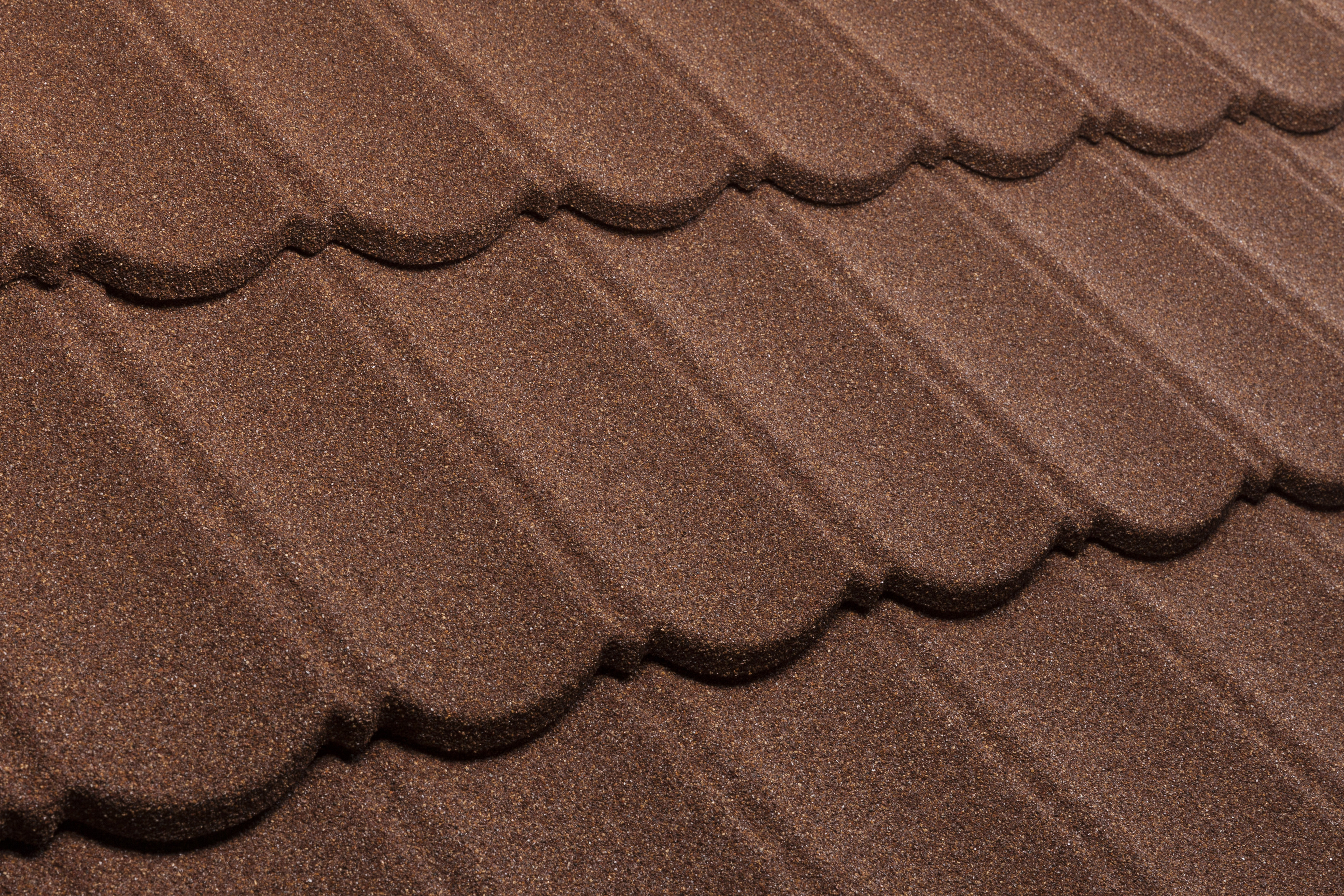

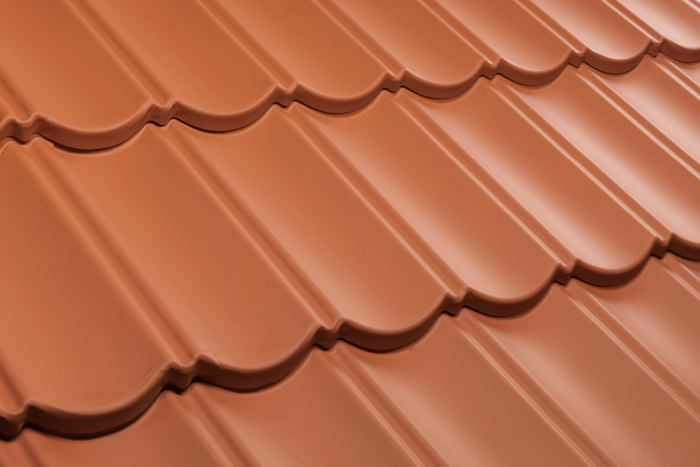

Terracotta

Popular Textured Colours

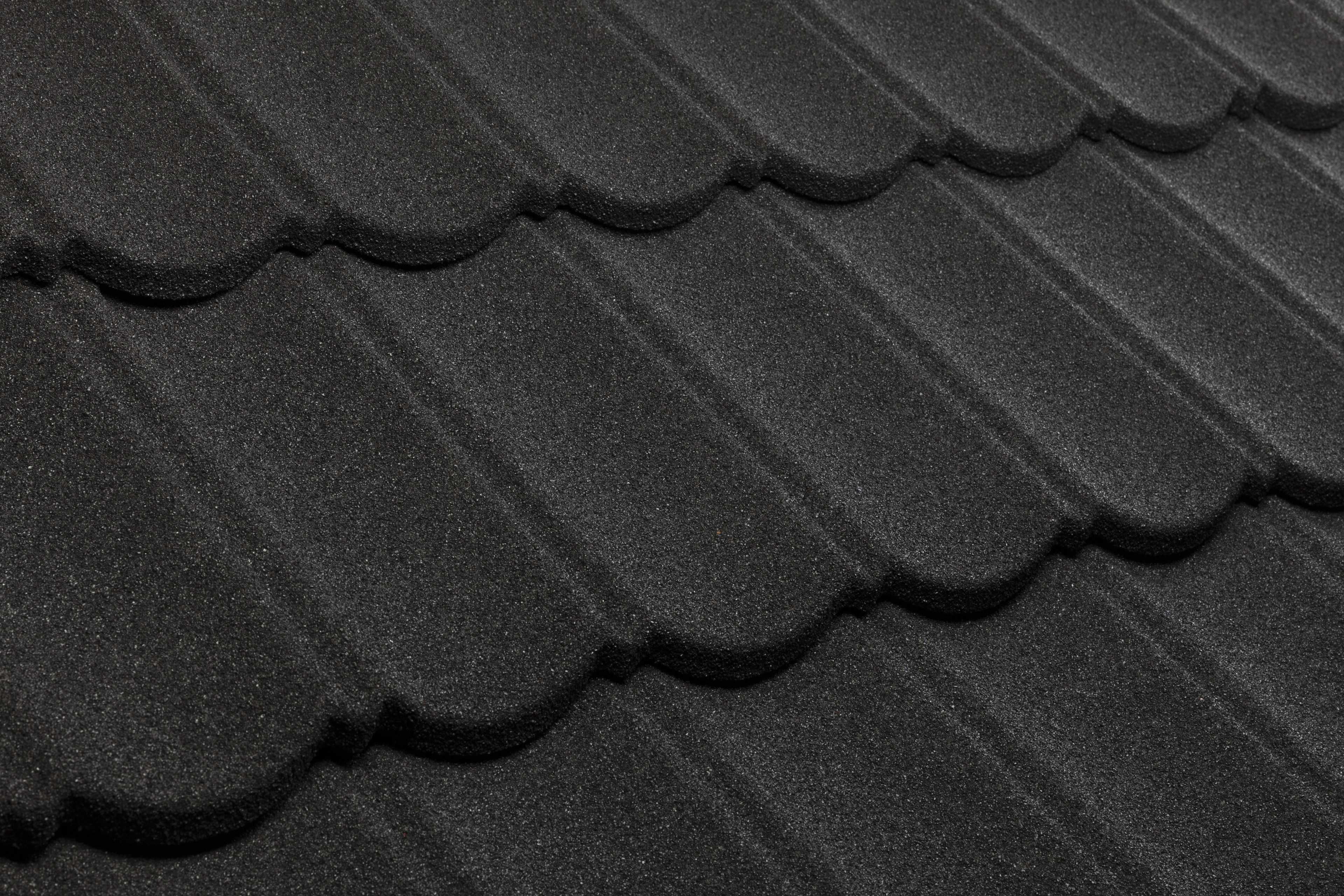

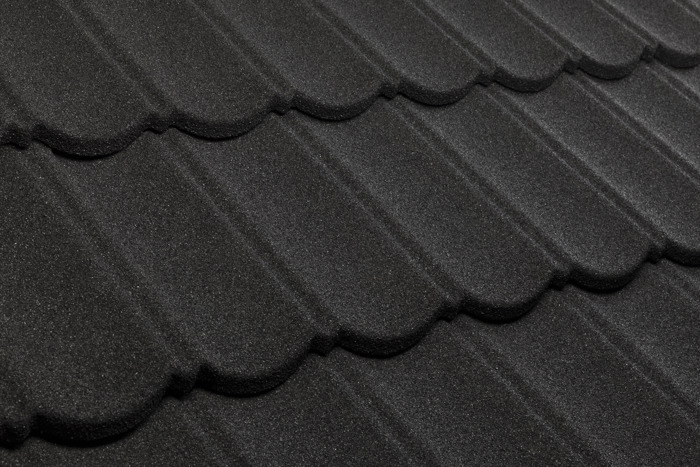

Midnight

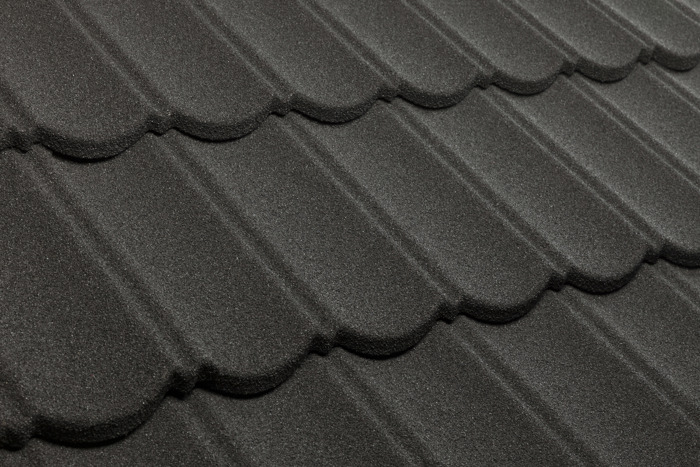

Charcoal

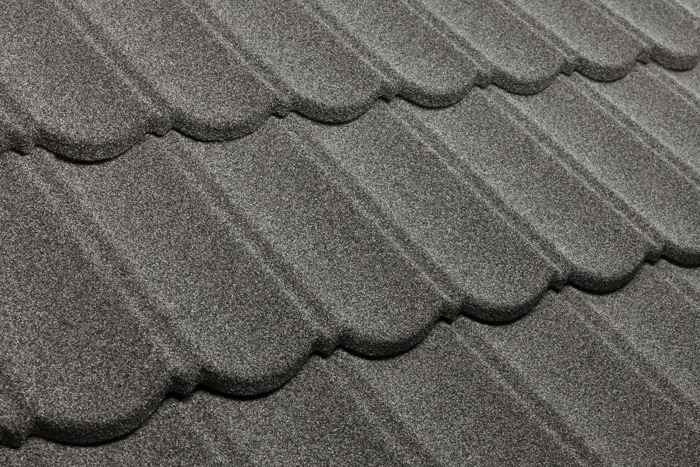

Onyx
Autumn

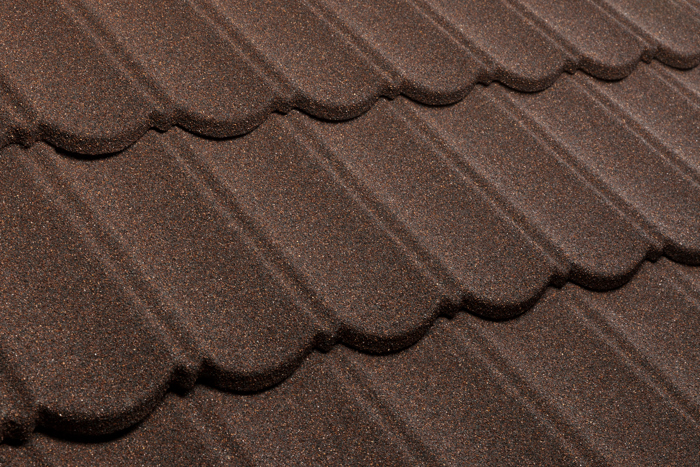

Teak

*Colours are as close to the actual products as possible. There may be slight variations due to screen settings.

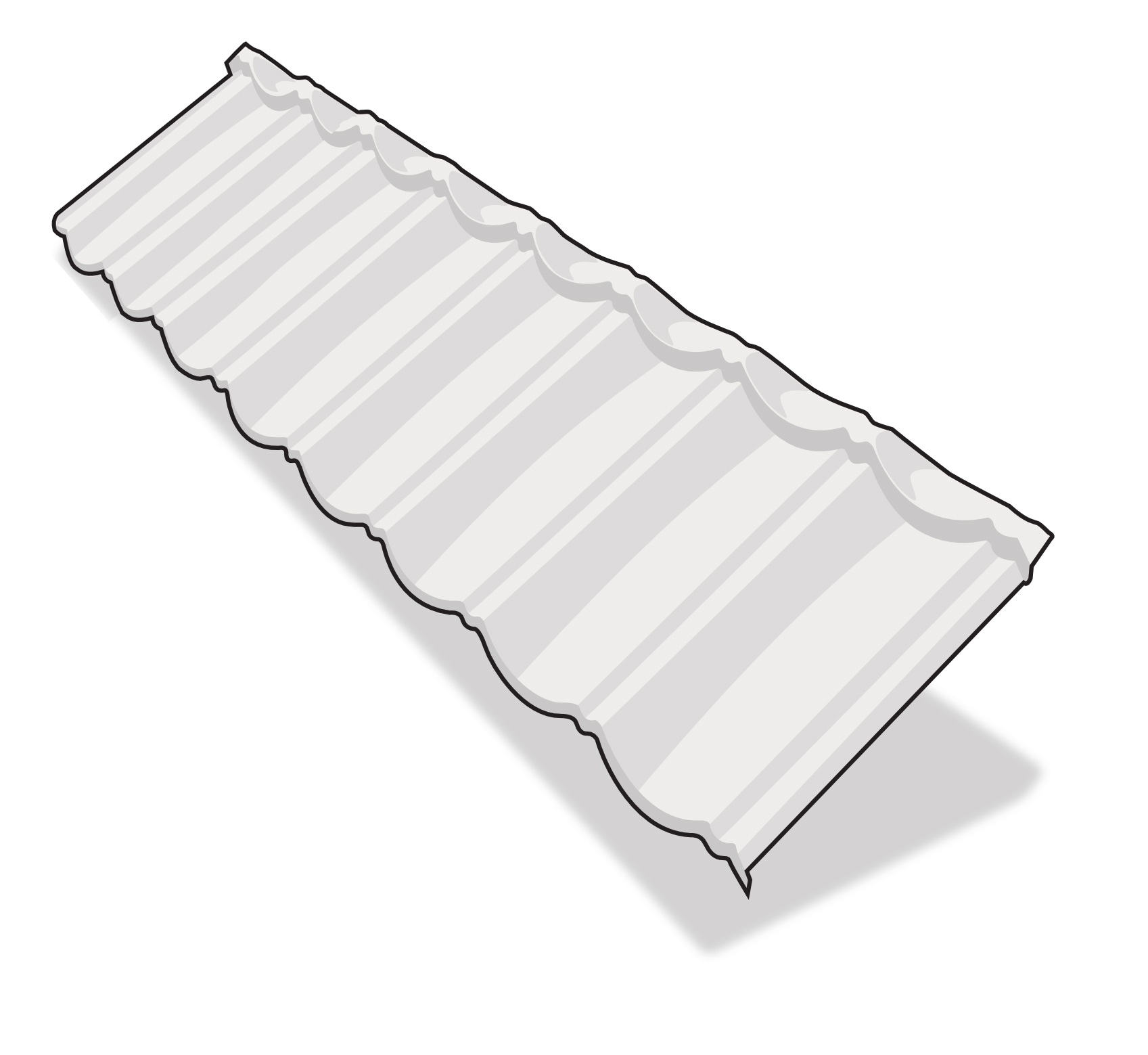

Product Specifications

Overall Length: 1325 mm
Length of Cover: 1265 mm
Width of Cover: 368 mm
Roof Cover / Panel: 0.47m2
Panel / m2: 2.15
Weight / Panel: 3.0 kg Textured / 2.1 kg Satin
Weight / m2: 6.4 kg Textured / 4.5 kg Satin
Minimum Pitch: 12 degrees

Technical documents

Bond Change In Pitch Detail
- PDF
Bond Change In Pitch Alternative Detail
- PDF
Bond Change In Pitch Low To High Detail
- PDF
Bond Eave Detail
- PDF
Bond Fascia - Angle Trim Detail
- PDF
View all CAD files View all documents
